Thông số kỹ thuật

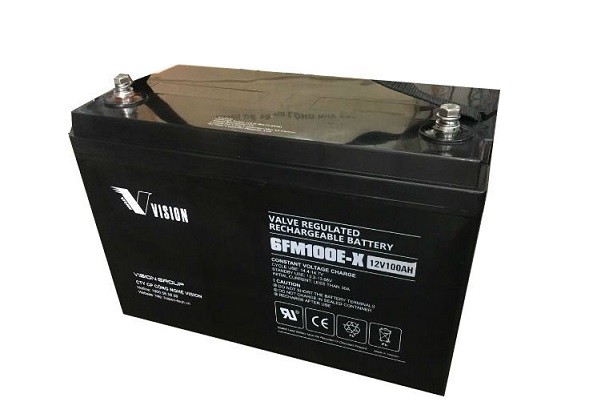

Battery model  6FM100E-X
Nominal Voltage 12V
Number of cell 6
Design Life 10years
Nominal Capacity 77°F(25°C) 10 hour rate (10.0A, 10.8V): 100Ah
5 hour rate (16.6A, 10.5V): 83.0Ah
1 hour rate (61.0A, 9.6V): 61.0Ah
Internal Resistance Fully Charged battery 77°F(25°C): ≤5.7 mOhms
Self-Discharge 3% of capacity declined per month at 20°C(average)
Operating Temperature Range Discharge: -20~60℃
Charge: -10~60℃
Storage: -20~60℃
Max. Discharge Current 77°F(25°C) 900A(5s)
Short Circuit Current 2100A
Charge Methods: Constant Voltage Charge 77°F(25°C) Cycle use: 2.40-2.45VPC
Maximum charging current: 30.0A
Temperature compensation: -30mV/℃
Standby use: 2.20-2.28VPC
Temperature compensation: -20mV/℃
Dimensions (LxWxH) 330 x 171 x 215 mm
Approx. weight 29 kg
